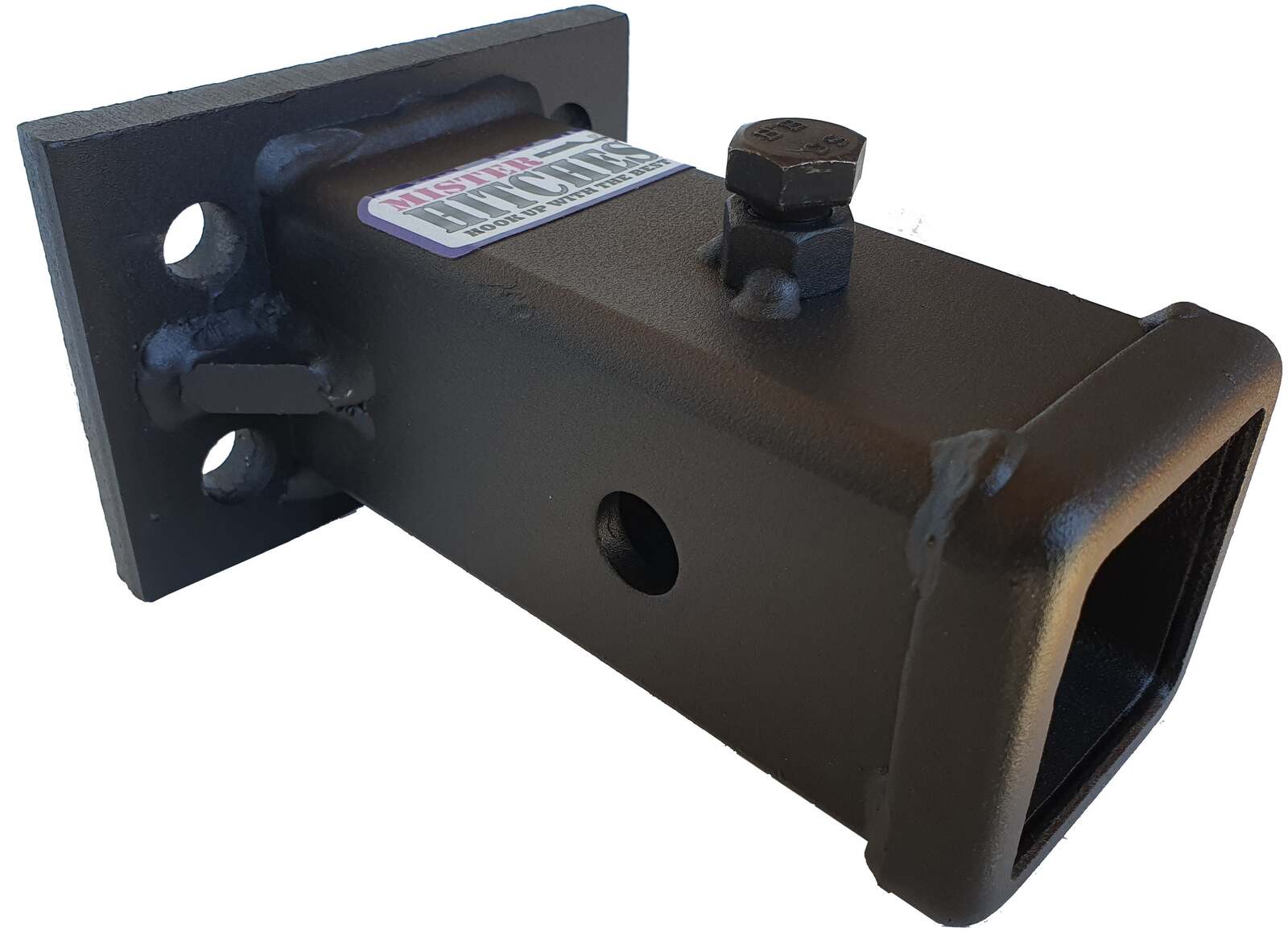

Mister Hitches 4 Bolt On Hitch Receiver

This handy bolt-on receiver is designed to bolt to existing pre-drilled mounting points in the rear frame cross brace of most Land Cruisers or Land Rovers. Can also bolt to any Pintle mount configuration.  Eg. 86mm x 44.5mm (3-3/8” x 1-1/4”)

Can also be mounted on any suitable mounting structure. Includes a anti-rattle bolt to hold the accessory firmly in the receiver tube.

The hitch pin and mounting hardware are sold separately. NHP3 HITCH PIN - MHPBK HARDWARE.

Features:

- G.T.W.: 2250kg  T.W.: 225kg
- 5.75mm steel shank, robotic welded for strength
- Shank I.D. 52mm x 52mm
- Bolt pettern 86mm (3-3/8” ) x 44.5mm (1-1/4”)
- Suits pintle mounts, LAND CRUISER & LAND ROVER REAR FRAME / CROSS BRACE PRE-DRILLED 4 HOLE MOUNTING POINTS.
- Inlcudes strengthening gussets and collar.
- SEAGUARD Matte Bblack powder coated finish gives superior corrosion protection
- Use 13mm grade 8 bolts & nuts. Torque to 136Nm (100ft-lbs)
- Bolt hardware sold separatel (part no. MHPBK).
- Do not overload
- Instructions inlcuded.

SKU MHBRT4
Barcode # 2000000010175
Brand Mister Hitches
Shipping Weight 2.9000kg
