This shank is optional for the Mister Hitches Weight Distribution System and can be used with the Multi-Hitch Mix 'N' Match adaptors.



This drop shank is fully reversible.

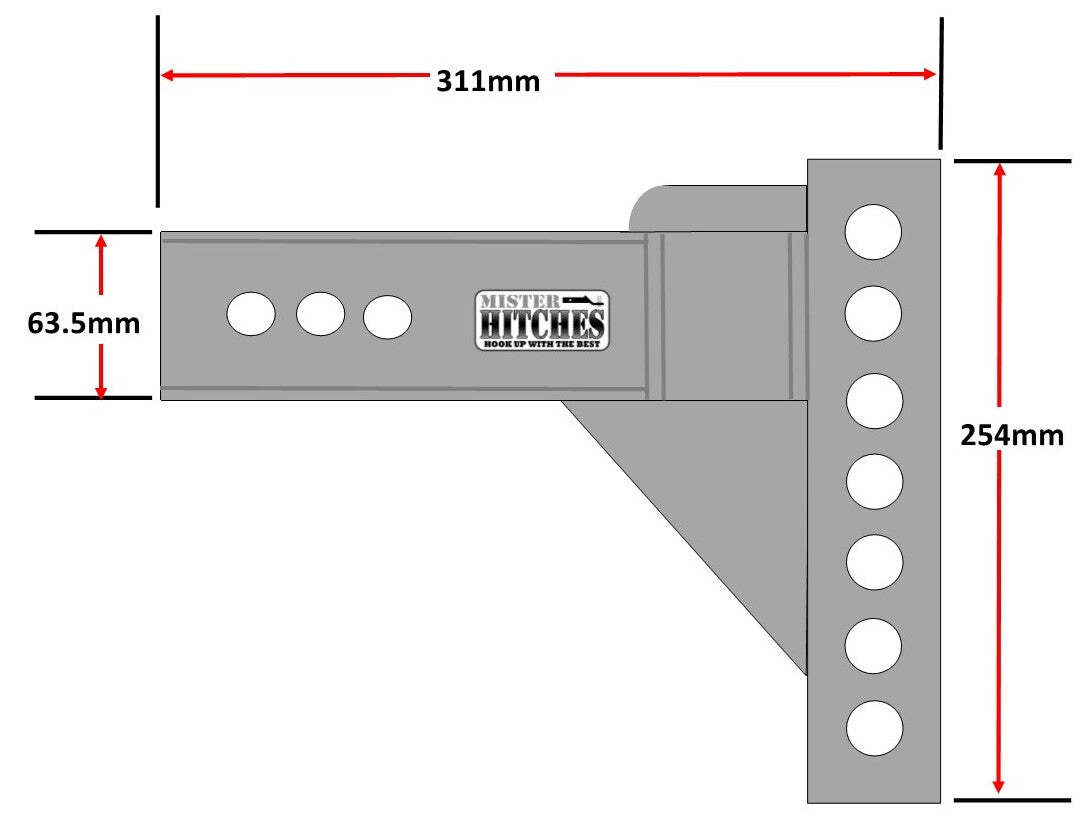

Made from solid steel 63.5mm / 2 1/2 " Square and suits imported trucks with larger tow bar receivers e.g. Dodge Ram, Silverado, GMC Sierra, F-Series.



All Mister Hitches drop shanks are made from solid steel high strength carbon steel (ATSM A36) & have a rated capacity of 4500kg. The rated towing capacity when used with a Mister Hitches Mix & Match adaptor is 3500kg. Compliant with the static test requirements of ADR62/02.

Please Note: Your towing capacity is determined by the lowest rated component of towing system e.g Vehicles tow & ball weight capacity, Tow ball, Tow Bar, Ball Mount etc.

Ball Couplings on tow bars are required to be installed so that the height of the centre of the body of the ball coupling is between 350mm and 420mm from the ground when laden (refer to ADR 62/01)

Compatible with Mister Hitches Multi-Hitch Ball Mount Adaptor - MHMHBM Sold Separately.

SKU MHWDS1025
Brand Mister Hitches
Shipping Weight 12.5000kg
