Redarc Tow-Pro Elite Extended Wiring Kit Universal

The REDARC Universal Tow-Pro Wiring Kit supports the Tow-Pro electric brake controller providing ‘Plug and Play' connectivity into a range of vehicles.


- The REDARC Universal Tow-Pro Extended Wiring Kit supports the installation of the Tow-Pro Elite electric trailer brake controller into a wide range of vehicles. It provides all the parts and wiring flexibility to fit most vehicles.
- It is suitable for vehicles where the start battery is on the other side of the vehicle from the rest of the installation via 3.7m power cable length.
- The only difference between this kit and Universal Tow-Pro Wiring Kit is the length of the positive power connection.
- The Universal Tow-Pro Extended Wiring Kit range replaces Tow-Pro Wiring Kit range and consolidates the range from 10 kits down to 3.

Which wiring kit do I need?

  • Ford Everest/Ranger TPWKIT-012
  • Holden Colorado TPWKIT-013
  • Isuzu (all models) TPWKIT-013
  • Mitsubishi Pajero TPWKIT-013
  • Mitsubishi Triton TPWKIT-014
  • Nissan Navara TPWKIT-014
  • Toyota Hilux TPWKIT-013
  • Toyota Fortuner TPWKIT-013
  • Toyota Kluger TPWKIT-013
  • Toyota LC200 TPWKIT-014
  • Toyota Prado TPWKIT-013
  • Volkswagen Amarok TPWKIT-014

Download the wiring kit explainer here.

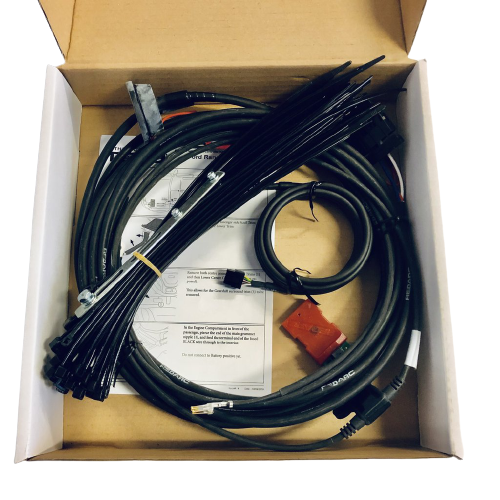

The Universal Tow-Pro Extended Wiring Kit comes with the complete range of hardware required to install a Tow-Pro Elite brake controller and contains a Wago Boot, Protection Device, Wiring Harness, Mounting Bracket and fitting instructions.

The standard 1m Remote Head cable that comes supplied in the Tow-Pro Elite will support the location of the remote head in the centre of the vehicle when the main unit is located around the glovebox area. If the preferred location for the remote head in these instances is on the driver’s side, you will need to purchase and fit the 2m remote head cable.

Modern vehicles continually feature new technology, the last couple of years have seen a rise in modern driving aids such as Autonomous Emergency Braking, Adaptive Cruise Control, lane departure and collision avoidance. REDARC’s range of Universal Wiring Kits is compatible with this new technology.

When you use a REDARC Universal Tow-Pro Extended Wiring Kit you ensure a high-quality and fast installation of the award-winning Tow-Pro Elite electric trailer brake controller.

For technical support or any other enquiries contact our Technical Support Team on 1800 REDARC.

Rating 12V
Weight (g) 1050
Dimensions 290x290x65mm
Warranty 2 Years
Application EBRH-ACCV3
Available separately Vehicle-specific Switch Insert / Alternative length Remote Head Cable
