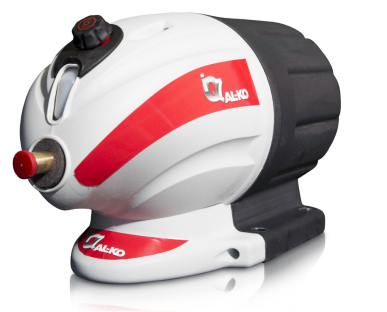

AL-KO iQ7 Electric Over Hydraulic (EOH) Brake Actuator with Built-In Breakaway (355002E) (Actuator Only - no brake controller included)

The AL-KO iQ7 is the latest in power assisted braking, designed to significantly improve stopping performance and safety for trailers with hydraulic brakes, especially large boat trailers.  It allows immediate brake application the instant it is required. And iQ7 includes inbuilt breakaway technology to stop your trailer if it becomes detached from the tow vehicle. No other parts are required.

The AL-KO iQ7 has been designed to operate in all ‘normal’ environmental conditions and it has been left to the discretion of the installer as to the location of the actuator. Although the AL-KO iQ7 housing is partly sealed to protect the internal components from the external environment, when exposed to corrosive environments such as salt water, fertiliser, and other caustic materials, care must be taken to protect the unit at all times. Although water-resistant, the AL-KO iQ7 unit is NOT waterproof and should NEVER be submerged at any time. It is therefore suggested that the AL-KO iQ7 unit be mounted towards the front of the towed vehicle and as high as practical

The AL-KO iQ7 is suitable for:

  • Boat trailers
  • Caravans
  • Horse floats
  • Car trailers
  • Plant trailers
  • Equipment trailers
  • Commercial trailers
  • Heavy-duty trailers fitted with hydraulic braking systems

Features

  • Genuine AL-KO iQ7 Electric Over Hydraulic Brake Actuator
  • Integrated breakaway system
  • Fast and proportional brake response
  • Compatible with hydraulic disc brake systems
  • Compatible with many hydraulic drum brake systems
  • Designed for trailers up to 4.5 tonne ATM
  • Compact, durable construction
  • ADR compliant when installed correctly

Total Trailer Parts is the authorised Sydney AL-KO distributor.

SKU 355002E
Shipping Weight 6.7000kg
Shipping Width 0.460m
Shipping Height 0.360m
Shipping Length 0.240m
Shipping Cubic 0.039744000m3
