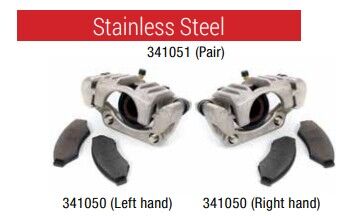

AL‑KO Stainless Steel Hydraulic Brake Caliper Disc Brakes  - PAIR (341051)

These genuine AL-KO stainless steel hydraulic disc brake calipers are compatible with AL-KO 1Q7 actuator or hydraulic override coupling systems.  Rated for trailers exceeding 2,000 kg GTM as per with Australian standards.  Suitable for boat trailers, caravans and heavy duty towing.

Hydraulic calipers are suitable for disc hubs and rotors of thicknesses of 15mm. Left hand & Right hand calipers are achieved by swaping the bleed screw and fluid line in positions, the bleed screw should always be on the highest port of the caliper.

Features:

  • Marine-grade stainless steel body and piston—built for for maximum salt water corrosion resistance

  • Operates up to 6.9 MPa (1,000 psi)

  • Mounting Detail: 12mm H.T. X 45mm set screws. 88.9mm (3.5”)

  • Recommended maximum load on 13”/14” wheels = 1600 kg per pair

  • Recommended maximum load on 15”/16” wheels = 1400 kg per pair

SKU 341051
Brand AL-KO
Shipping Weight 9.0000kg
