AL-KO Off Road Electric Brakes have been specifically designed to prolong the life of brake componentry in extreme rugged conditions.

For this reason, if rough roads and corrugations will be encountered, we always recommend fitting the AL-KO Off Road version of electric brakes to your caravan, camper or trailer.



Recommended maximum load on 13”/14” wheels 1600 kg per pair

Recommended maximum load on 15”/16” wheels 1400 kg per pair

Mounting Detail 4 x 7/16” UNF x 76.15mm PCD



AL-KO's Off Road Magnet

For off road application AL-KO have developed a unique magnet specifically designed to prolong magnet life. This magnet is identified by a special high tech “plastic” core in the centre of the magnet. This core should be periodically inspected for wear and the magnet replaced if wear is evident. As the off road magnet does not use a magnet retaining clip, we suggest it is held in place for service installation by a light rubber band which will disintegrate on the first brake application.

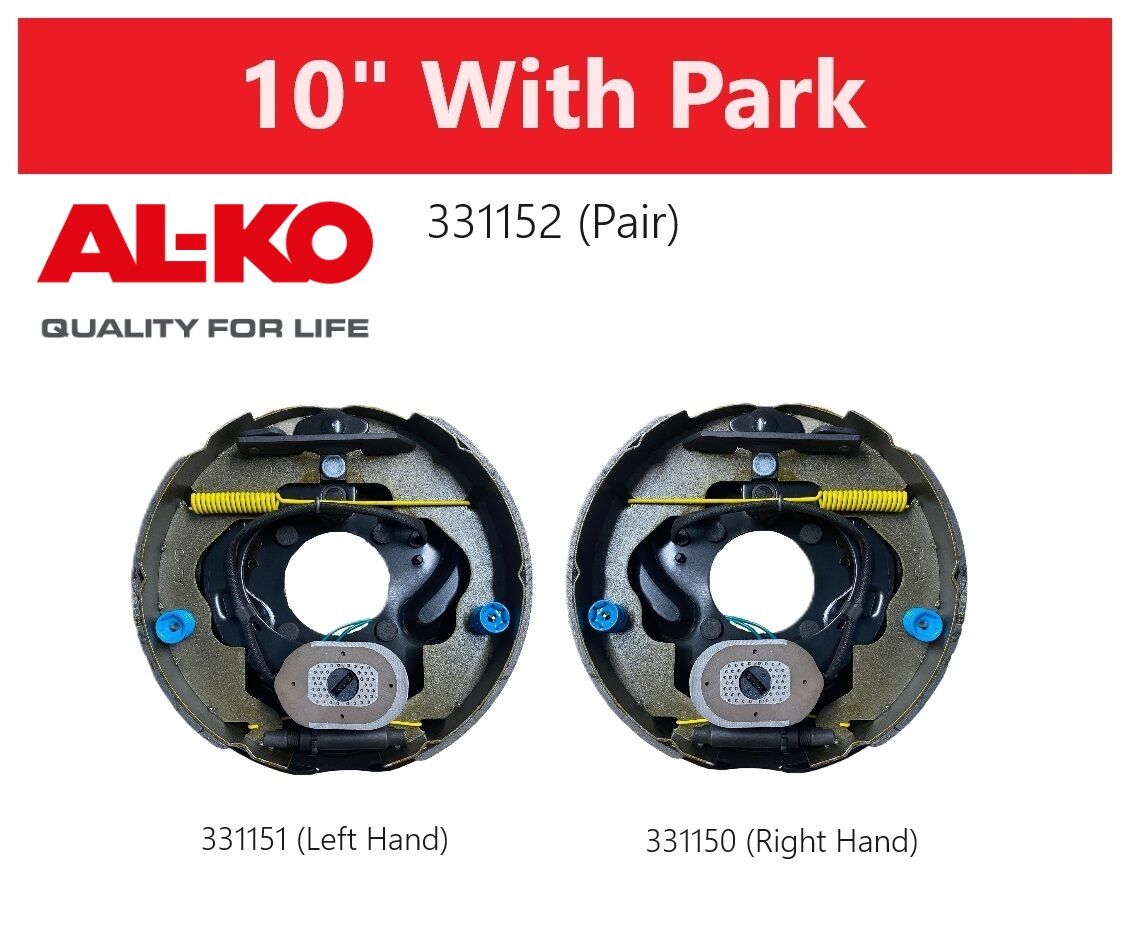

SKU 331151H
Brand AL-KO
