Exotronic 200W Fixed Solar Panel - 1480x670x25mm Black Frame  + Victron BlueSolar 20A PWM Charge Controller

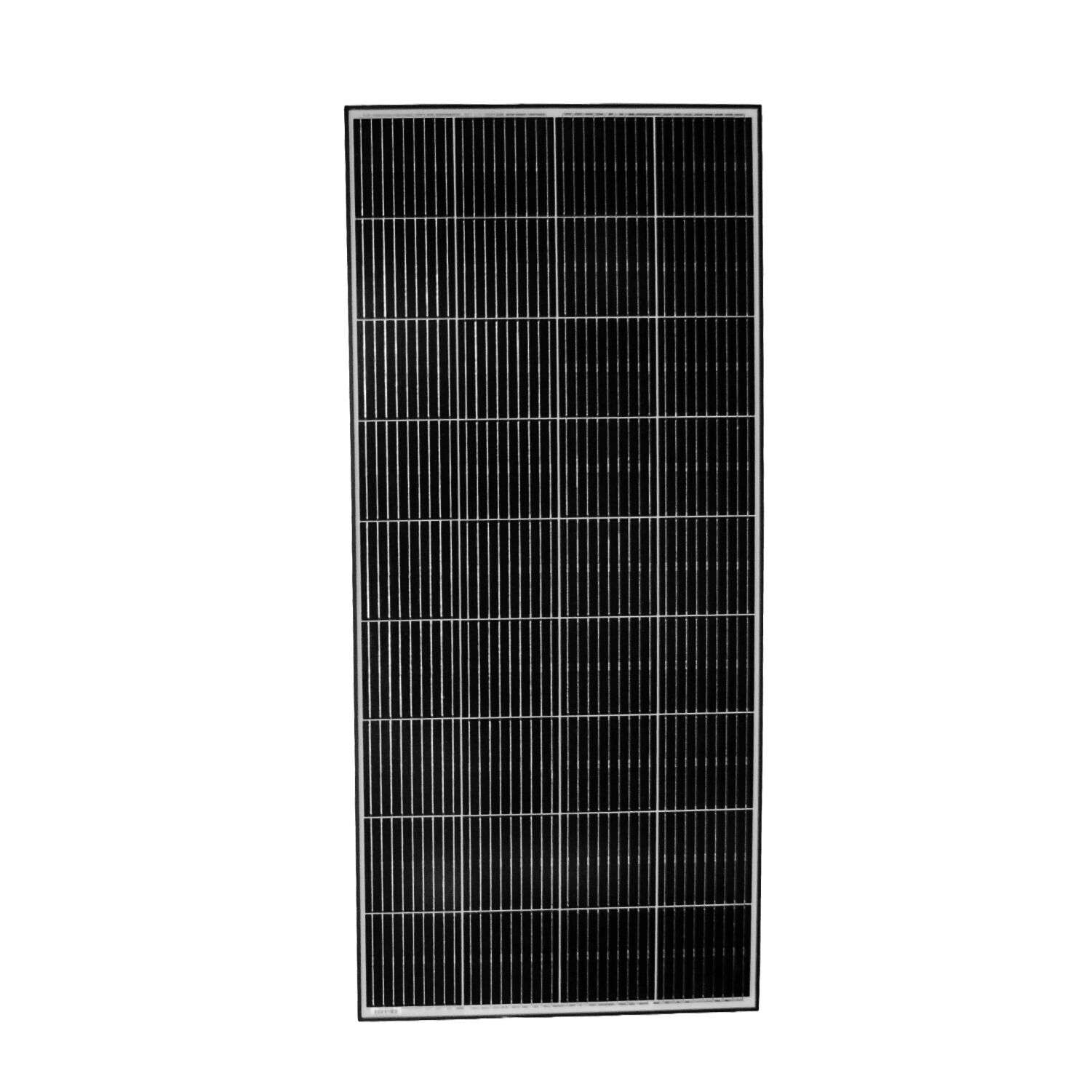

Exotronic 200W Fixed Solar Panel

Maximize Solar Efficiency with the Exotronic 200W G1 Mono-PERC Solar Panel

Leverage the power of advanced solar technology with G1 Mono-PERC solar panels, offering an efficiency rate of 23% and equipped with cut cells. Incorporating a modern low-loss bus-bar design, these panels deliver high efficiency and a positive power tolerance, demonstrating a competitive edge over traditional counterparts.

PERC Cells: Power and Efficiency Redefined

The inclusion of Passivated Emitter and Rear Cells (PERC) technology enhances the overall performance of these panels. In contrast to standard monocrystalline silicone designs, PERC cells exhibit improved low light performance by effectively utilizing the light that would otherwise pass through the cell, converting it back into electricity.

Exotronic Range: Synchronized Voltages for Enhanced Compatibility

The Exotronic range of panels has been meticulously designed to harmonize voltages across all sizes, enabling all modules to be wired in parallel. This harmonization facilitates optimal compatibility and ease of installation.

Robust Construction Paired with Sophisticated Aesthetics

The panels feature a durable anodised aluminium frame, fortified by a black protective coating and a streamlined 25mm profile. This refined design reduces the module's weight without compromising its structural integrity, effectively protecting the module from vibrational and torsional stresses. The use of tempered, high transmissivity, low-iron glass ensures superior low light performance and high resistance to impact.

Engineered for Resilience under Adverse Conditions

• Resistance to salt mist and ammonia
• Wind load resistance - up to 2400 Pascal
• Snow load resistance - up to 5400 Pascal

Each solar panel is equipped with an 800mm lead from the junction box, inclusive of MC4 connectors, for effortless installation.

Ideal for High-Power Applications in Caravans, Boats, and Beyond

These panels are expertly designed to cater to high-energy needs, making them particularly well-suited for powering large caravan fridges. This ensures that your food and beverages remain cool and fresh, providing comfort and convenience wherever your travels take you. They are equally effective for boats outfitted with large inverters, offering sufficient power for a seamless and enjoyable on-water experience. Additionally, their adaptability makes them a perfect choice for stationary settings such as off-grid cabins or remote workshops, delivering consistent and reliable energy for a diverse range of requirements.

Victron BlueSolar 20A PWM Charge Controller

Liquid crystal display

 For status monitoring and set-up

Load output

Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

Day/night timing of the load output

This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm

Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs

Maximum current (both outputs combined): 2A
