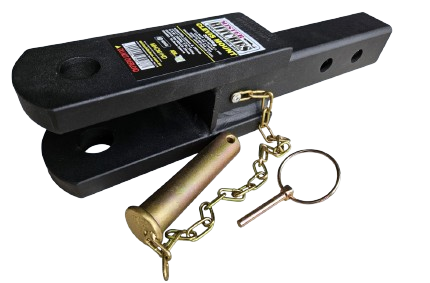

Mister Hitches Clevis Mount Hitch Heavy Duty 3500kg with 1" Pin (MHCM1HD)

This Clevis Mount has been designed for strength. CNC machined and robotic welding makes this hitch one of the best of its kind.
Mainly used in rural areas for towing farming plant & equipment, eg. spreaders etc.
This Clevis Mount incorporates a super strong 1” dia. GR8 Clevis Pin which has been rated at 5700kg and is tethered to the mount using a zinc plated chain to prevent loss of the pin when not in use.

Features
• G.T.W.: 3500kg T.W.: 350kg
• 2 Pin Holes give lengths of 299mm & 289mm (Measured from pin holes to clevis pin hole).
• Includes 25.4mm (1”) Grade 8 Zinc Clevis Pin (5700kg rated) & Support Chain.
• Useable shank length: 175mm.
• 75mm x 20mm Clevis Tangs.
• Includes strengthening plate between top & bottom tangs.
• Seaguard matt black pwder coat finish gives superior corrosion protection.
• Overall Length: 380mm.

**WARNING: Do Not Overload**



SKU MHCM1HD
Brand Mister Hitches
Shipping Weight 7.2000kg
