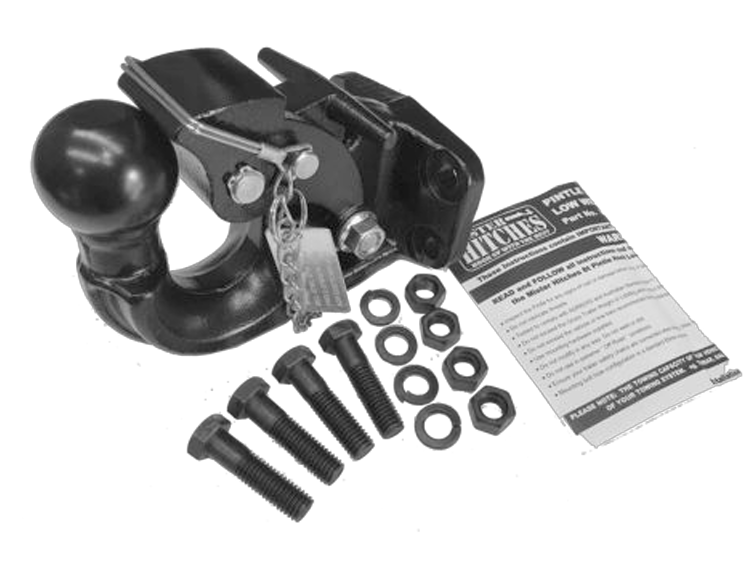

Mister Hitches Combination Pintle Hook 8T Fully Forged Low Wear with 50mm Tow Ball  (MHPC8)

Features

  • Max Ball G.T.W. : 3500kg  Max Pintle G.T.W. : 8000kg
  • Max T.W. : 1360kg
  • D-Value: 36Kn
  • Fully Forged 50mm ball. Q345 high grade teel (AS3678 Grade 350)
  • Includes 4 x HT Gr 8 Bolts & Nuts & Safety Clip
  • Powder coated finish
  • Fits to pintle received arm (MHPRA) - optional.
  • Can be used with standard 50mm ball couplings or with 75mm pintle ring coupling.
  • Used in agriculture, mining, 4X4 and where shifting heavy loads is required - e.g. Plant Trailers.
  • Mounting Hole Configuration: 45mm x 85mm
  • Includes instruction sheeet
  • ADR62/02 2 million cycle dynamically tested in Australia by a Rover Certified Lab.
  • Test loaded to 21.6Kn which is equivalent to a D-Value of 36Kn.
SKU MHPC8
Brand Mister Hitches
Shipping Weight 5.7000kg
